Drive, head, tail, bend, snub, take-up, wing and drum pulleys — machined on CNC lathes to ±0.01 mm, balanced to ISO 1940, and lagged in rubber, ceramic or diamond groove to match your belt tension and environment.
Transmits motor torque; lagged for grip.

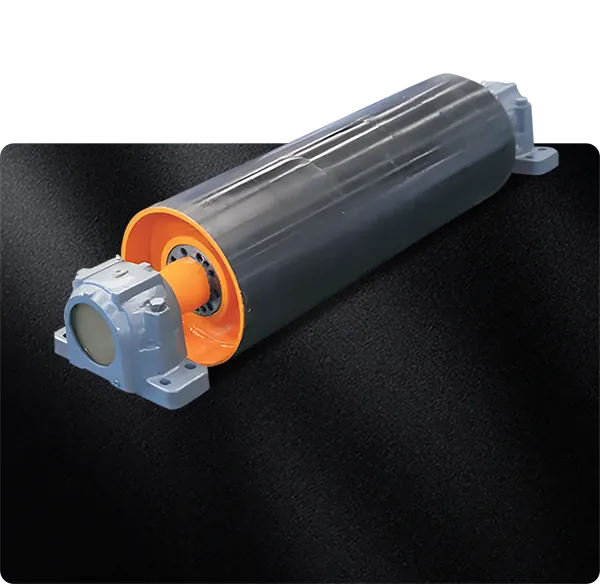

Changes belt direction and increases wrap angle.

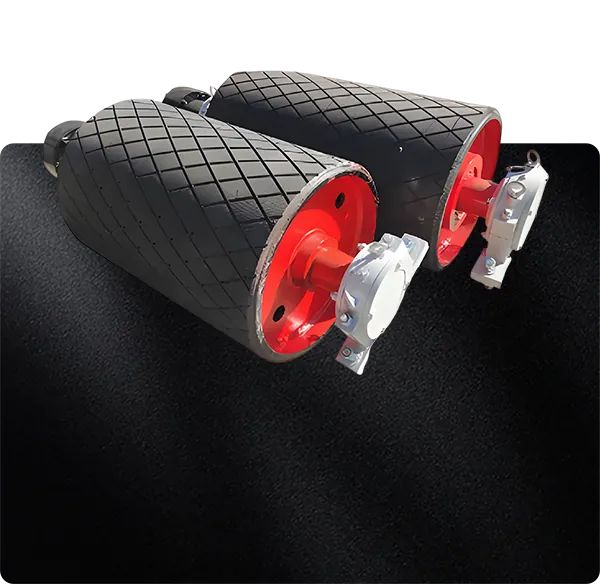

Return-end pulley at the loading point.
Discharge-end pulley, often the drive unit.
Maintains belt tension under load variation.
Sheds material build-up on the return side.
Smooth-shell drum for standard duty.
Rubber lagging for traction and belt protection.
Ceramic tiles for high-tension, wet or muddy duty.
Grooved rubber that channels water and fines away.
Integrated drive for compact conveyor heads.
Return-side support and tracking control.
Food, chemical and wash-down service.
| Parameter | Specification |
|---|---|
| Machining | CNC lathes to ±0.01 mm on shell and shaft |
| Welding | Displacement-robot beam welding, uniform high-strength seams |
| Balancing | Dynamic balancing to ISO 1940 vibration limits |
| Lagging options | Rubber · ceramic · diamond groove · vulcanized with grooving |
| Shell material | Carbon steel, stainless steel shell available |
| Shaft material | 45# steel (C45 / S45C / AISI 1045 equivalent) |
| Standards | GB / DIN / JIS / BS — exceeding GB/T 10595-2009 |
| Traceability | Unique ID tag, full lifecycle records |
General-purpose grip on drive pulleys in dry conditions. The default choice for most indoor and covered conveyors.
Ceramic tiles bite through water and mud film where rubber slips. Used on high-tension drives in mining and ports.
Grooved pattern channels water and fines out from under the belt, keeping effective friction high.
Not sure which one your belt tension needs? Send us the belt specification, wrap angle and environment — we will recommend and quote both.
Buying both from one factory means matched tolerances, one shipment and one accountable supplier.
